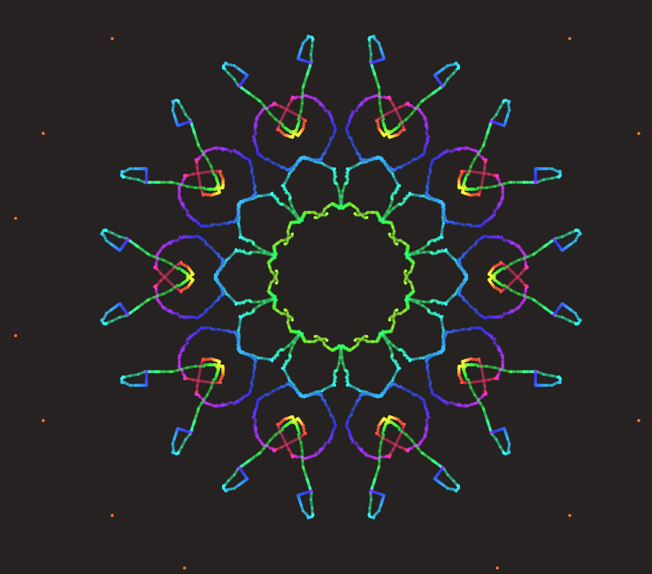

Design a kaleidoscope that generates symmetrical patterns based on mouse movements. Use pj5s

In this article i have established the main kaleidoscope logic and prepared several convenient controls. You will be constantly drawing colours which will change and they will give the effect of a constantly changing rainbow and the symmetrical balanced lines will make interesting patterns in the mirror.

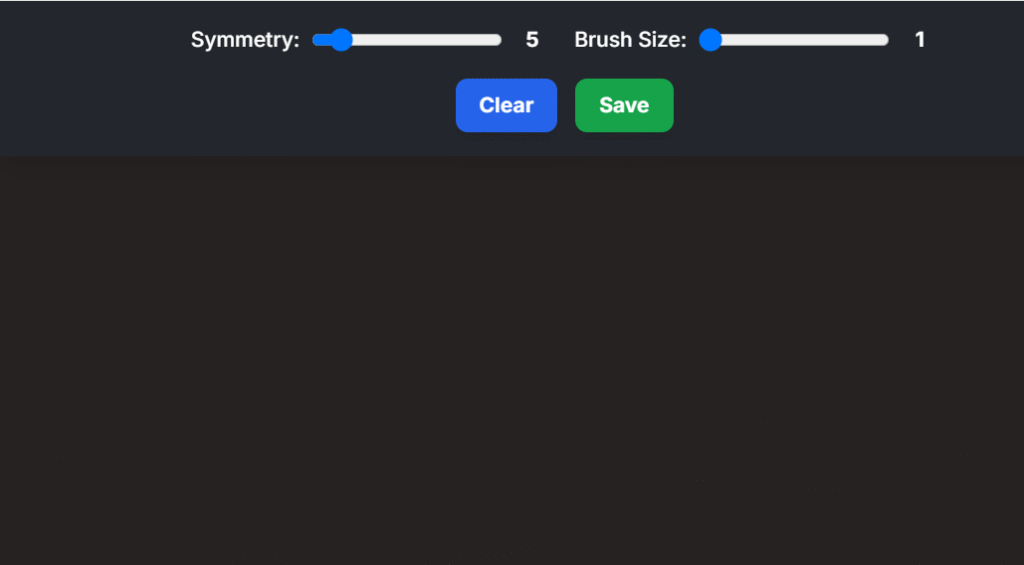

Now you are able:

Using the slider of the “Symmetry” adjust the number of reflections.
With the slider marked “Brush Size” you can adjust the thickness of your lines.
Clear with the button and start a new canvas.
With the button “Save”,” save your favorite creations as PNG image.

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Interactive Kaleidoscope</title>
    <!-- Tailwind CSS for styling the controls -->
    <script src="https://cdn.tailwindcss.com"></script>
    <!-- p5.js library -->
    <script src="https://cdnjs.cloudflare.com/ajax/libs/p5.js/1.9.0/p5.js"></script>
    <style>
        /* Basic styles for the body and canvas */
        body {
            margin: 0;
            padding: 0;
            overflow: hidden;
            background-color: #111827; /* Dark background for the page */
            font-family: 'Inter', sans-serif;
        }
        main {
            display: flex;
            justify-content: center;
            align-items: center;
            height: 100vh;
        }
        /* Style to ensure the canvas doesn't have a default block display margin */
        canvas {
            display: block;
        }
    </style>
    <link rel="preconnect" href="https://fonts.googleapis.com">
    <link rel="preconnect" href="https://fonts.gstatic.com" crossorigin>
    <link href="https://fonts.googleapis.com/css2?family=Inter:wght@400;500;700&display=swap" rel="stylesheet">
</head>
<body>

    <!-- Header with controls for the kaleidoscope -->
    <div id="controls" class="fixed top-0 left-0 right-0 bg-gray-800/50 backdrop-blur-md p-4 z-10 shadow-lg">
        <div class="container mx-auto flex flex-wrap items-center justify-center gap-4 md:gap-6">
            <!-- Symmetry Control -->
            <div class="flex items-center space-x-2 text-white">
                <label for="symmetrySlider" class="text-sm font-medium">Symmetry:</label>
                <input id="symmetrySlider" type="range" min="2" max="30" value="8" class="w-32 md:w-40 cursor-pointer">
                <span id="symmetryValue" class="text-sm font-bold w-6 text-center">8</span>
            </div>

            <!-- Stroke Weight Control -->
            <div class="flex items-center space-x-2 text-white">
                <label for="strokeSlider" class="text-sm font-medium">Brush Size:</label>
                <input id="strokeSlider" type="range" min="1" max="40" value="4" class="w-32 md:w-40 cursor-pointer">
                <span id="strokeValue" class="text-sm font-bold w-6 text-center">4</span>
            </div>

            <!-- Buttons -->
            <div class="flex items-center space-x-3">
                <button id="clearButton" class="px-4 py-2 bg-blue-600 text-white rounded-lg hover:bg-blue-700 transition-colors duration-200 text-sm font-semibold shadow-md">Clear</button>
                <button id="saveButton" class="px-4 py-2 bg-green-600 text-white rounded-lg hover:bg-green-700 transition-colors duration-200 text-sm font-semibold shadow-md">Save</button>
            </div>
        </div>
    </div>

    <!-- The p5.js canvas will be injected here -->
    <main id="canvas-container"></main>

    <script>
        // This is the main p5.js sketch for the kaleidoscope
        const sketch = (p) => {
            // Global variables for the sketch
            let symmetry = 8;
            let angle;
            let strokeWeightValue = 4;

            // The setup function runs once when the sketch starts
            p.setup = () => {
                // Create canvas and attach it to the container element
                const canvasContainer = document.getElementById('canvas-container');
                const canvas = p.createCanvas(p.windowWidth, p.windowHeight);
                canvas.parent(canvasContainer);

                // Set initial drawing properties
                p.angleMode(p.DEGREES); // Use degrees for rotation
                p.colorMode(p.HSB, 360, 100, 100, 100); // HSB color mode is great for smooth color transitions
                p.background(15, 15, 15); // Dark background for the drawing canvas

                // Calculate the angle for each symmetrical slice
                angle = 360 / symmetry;
            };

            // The draw function runs continuously in a loop
            p.draw = () => {
                // Move the origin to the center of the canvas
                // This makes rotations and symmetrical drawing much easier
                p.translate(p.width / 2, p.height / 2);

                // Only draw if the mouse is pressed and inside the canvas
                if (p.mouseIsPressed &&
                    p.mouseX > 0 && p.mouseX < p.width &&
                    p.mouseY > 0 && p.mouseY < p.height) {

                    // Get mouse coordinates relative to the new (center) origin
                    const mx = p.mouseX - p.width / 2;
                    const my = p.mouseY - p.height / 2;
                    const pmx = p.pmouseX - p.width / 2;
                    const pmy = p.pmouseY - p.height / 2;

                    // Set the drawing style
                    // The hue cycles through all colors based on frameCount, creating a rainbow effect
                    const hue = p.frameCount % 360;
                    p.stroke(hue, 80, 100, 50); // Rainbow color with some transparency
                    p.strokeWeight(strokeWeightValue);

                    // Loop through each symmetry slice to draw the pattern
                    for (let i = 0; i < symmetry; i++) {
                        p.rotate(angle);

                        // Draw a line from the previous mouse position to the current one
                        // This creates smooth, continuous strokes
                        p.line(mx, my, pmx, pmy);

                        // To create the mirror effect within each slice, we flip the
                        // coordinate system horizontally and draw the line again.
                        p.push(); // Save the current drawing state
                        p.scale(-1, 1); // Flip horizontally
                        p.line(mx, my, pmx, pmy);
                        p.pop(); // Restore the original drawing state
                    }
                }
            };

            // This function is called whenever the window is resized
            p.windowResized = () => {
                p.resizeCanvas(p.windowWidth, p.windowHeight);
                p.background(15, 15, 15); // Clear background on resize
            };

            // ---- INTERACTION HANDLERS ----

            // Function to clear the canvas
            const clearCanvas = () => {
                p.background(15, 15, 15);
            };

            // Function to update symmetry
            const updateSymmetry = (value) => {
                symmetry = value;
                angle = 360 / symmetry;
            };

            // Function to update stroke weight
            const updateStrokeWeight = (value) => {
                strokeWeightValue = value;
            };

            // Attach functions to the window object to make them accessible by HTML event listeners
            window.clearCanvas = clearCanvas;
            window.updateSymmetry = updateSymmetry;
            window.updateStrokeWeight = updateStrokeWeight;
            window.saveCanvas = () => p.saveCanvas('kaleidoscope', 'png');
        };

        // Create a new p5 instance and run the sketch
        new p5(sketch);

        // ---- DOM EVENT LISTENERS ----

        document.addEventListener('DOMContentLoaded', () => {
            const symmetrySlider = document.getElementById('symmetrySlider');
            const symmetryValue = document.getElementById('symmetryValue');
            const strokeSlider = document.getElementById('strokeSlider');
            const strokeValue = document.getElementById('strokeValue');
            const clearButton = document.getElementById('clearButton');
            const saveButton = document.getElementById('saveButton');

            // Update symmetry from slider
            symmetrySlider.addEventListener('input', (e) => {
                const val = parseInt(e.target.value, 10);
                symmetryValue.textContent = val;
                window.updateSymmetry(val);
            });

            // Update stroke weight from slider
            strokeSlider.addEventListener('input', (e) => {
                const val = parseInt(e.target.value, 10);
                strokeValue.textContent = val;
                window.updateStrokeWeight(val);
            });

            // Clear button functionality
            clearButton.addEventListener('click', () => {
                window.clearCanvas();
            });

            // Save button functionality
            saveButton.addEventListener('click', () => {
                window.saveCanvas();
            });
        });

    </script>
</body>
</html>
